CRANK FEATURES

- Aerodynamically designed to reduce turbulence and separation around the spider, chainring and crankarm.
- 144mm BCD for track and road with 6mm thick chainrings, improving power transfer by eliminating any chainring flex.

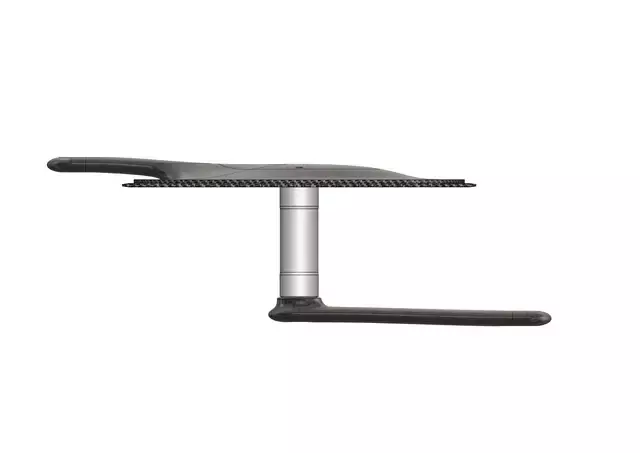

- 124.5mm Q factor. Narrower than nearly every crankset currently on the market.
- Adjustable crankarm length between 145-160mm and 160-175mm at 2.5mm increments for each crank size. Also available in fixed crank length.
- Optional - road option comes with low friction additive infused 1x narrow-wide chainring in 58/60/62/64T.
- Optional - track option comes with low friction additive infused 1/8” track chainring in 58/59/60/61/62/63/64/65/66T.

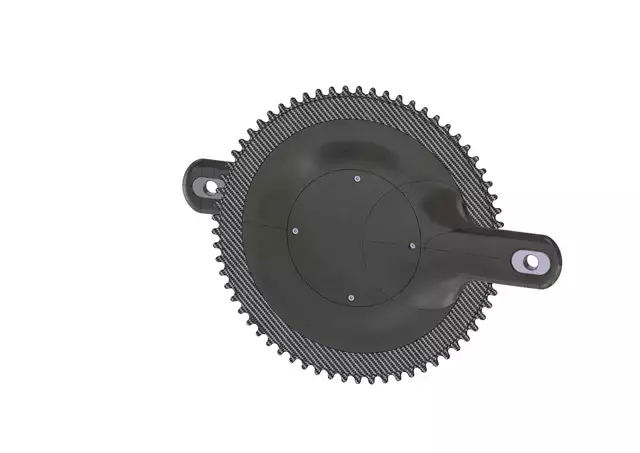

- Stepped chainring design keeps the chain outer plates flush with the chainring to reduce air-flow separation with paired with our crank specific chainrings.
- Interchangeable spindle sizes.
- Compatible with all frames that run BSA, ITA,BB30, PF30, BBRight, BB30a, PF30a, BB90, BB86, Evo386, T45, T47/68, T47/86 bottom brackets.
- Laser etched WattShop logo to the drive side and non-drive side.

A full crankset consists of:

- 1x drive side and non-drive side arms
- 1x drive side dome cover
- 1x spindle
- 1x pair of pedal inserts and plates
- 1x retention bolt and washer
- 1x set of chainring bolts (male only)
- 1x set of hardware
- OPTIONAL 1x 6mm track or 6mm 1x chainring

NOTE

Standard 58t or larger 144BCD 5 bolt chainrings can be used with the crank. If you want to utilise this option please select "N/A" under chainring options. We recommend the Pyramid 144BCD 5 bolt track and 1x chainrings as compatible options (both available through WattShop). However it is optimal to have a Cratus specific chainring.

This crank is only compatible with 58T or larger chainrings and it is currently single ring only design. Chainrings can be ordered separately.
