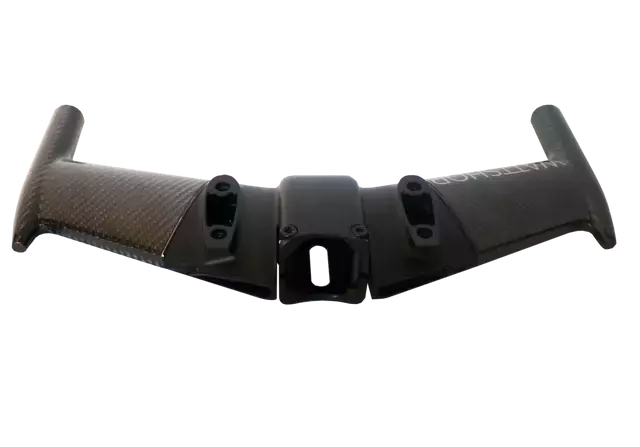

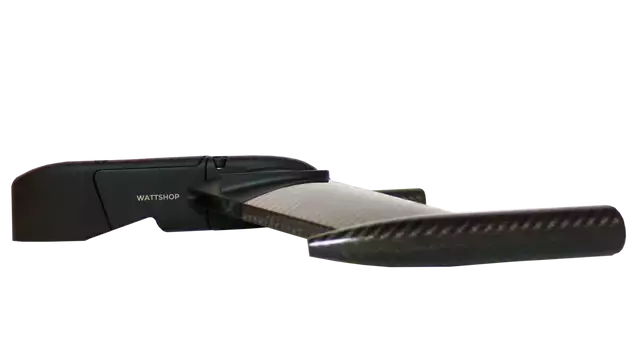

Wattshop Anemoi Basebar
R$17.380,00
- EXTENSION FEATURES
- Ultra narrow basebar width. Centre to centre measuring in at 320mm with an outside to outside dimension of 352mm.
- Aerodynamically optimised kammtail airfoil profile.
- Fully internal mechanical and electronic cable routing.
- 25mm of stem length adjustment without needing to recable.
- Short stem length 70-95mm, medium stem length 95-120mm and long stem length 120-145mm. All are interchangeable.
- Interlocking slotted riser stack spacers that allow you to adjust riser stack height without having to re-cable.
- Seamless mounting to either the Anemoi or Minimoi extension systems.
- Interchangeable cable covers to suit standard steerers and integrated headtube steerers.
- Detachable carbon "wings" for easy travel, post-crash replacement and future wing upgrades.
- 22.2mm diameter grips to allow for standard brake levers, both rim and disc brake.
- Standard 1 1/8" (28.6mm) steerer diameter.
- Entirely UK designed, optimised and manufactured.
- Surpassed ISO standard 4210-5:2014
- UCI compliant.
A full system comprises of:
- 1x pair of carbon wings
- 1x front stem
- 1x front stem middle bolt cap cover
- 1x rear stem (short or medium)
- 1x rear stem cover cap (standard or integrated, both included)
- 1x steerer cap
- 1x stem spacer set (2x 10mm and 1x 5mm)
- 1x riser stack spacer set (20x 5mm spacers = 50mm per side)
If you want to know more about the adjustment range the base offers please check out our Adjustment & Customisation blog.
WHAT COMPONENT PARTS DO I REQUIRE?
If you are not using the Anemoi Extension System, you can determine your stem based on stem length as a standard cockpit will retain fore-aft adjustment with the poles/pole clamp however however you may still find the geometry tool useful for dialling in your optimised setup.
If you are using the Anemoi extension system please download our dimension guide before inputting those dimensions into our geometry tool. The output of this will tell you the components needed for your specific set up and relevant fit information. Using the geometry tool will allow you to remove the need for the mount plates so you can directly mount to the riser stack.
